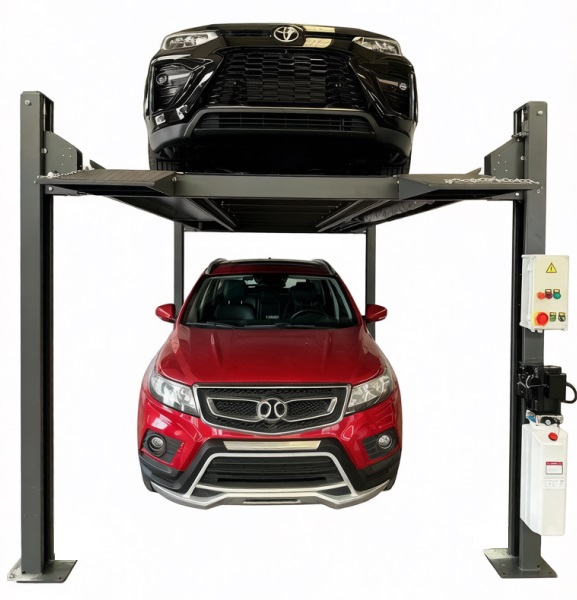

FOUR POST PARKING LIFT

Main Products

Product Features :

1. Hydraulic oil cylinder driven by steel wire rope.

2. The self-lubricating polymer polyethylene slider with grooves automatically maintains a distance from the sliding hole to ensure that the locking block can be locked into the sliding hole at a distance.

3. Column limit switch, height limit automatic shutdown, with sliding memory inside the column,

4. Self lubricating polymer polyethylene slider.

5. Column limit switch, height limit automatic shutdown.

6. The running board is reinforced with a load capacity of up to 3.6-4 tons.

7. Electric unlocking, manual unlocking or electric lifting, manual unlocking

8. The middle plate, side guard plate, and universal wheel are optional.

Technical Parameters：

Name	Four post parking lift
Model	PJS601-3600 / 4000
Dimension	4198/4598/574026802303/2503/ 2603mm
Lifting weight	3600 / 4000 kg
Platform size	4198/4598/4798*473mm
Lifting height	1800/2000/2100mm
Cylinder quantity	Single cylinder hydraulic
Motor power	2.2KW /3KW
Rise/Drop Time	70s/60s
Control mode	Electric control
Operate mode	Key
Lock mode	Electric unlocking, manual unlocking or electric lifting, manual unlocking
Drive mode	Hydraulic and wire rope drive and keep balance
Middle plate	Galvanized wavy plate or patterned plate
Electric	220-415V ,50/60 HZ, 1/3 phase
Surface treatment	Powder coated /hot-dip galvanizing
Size package	49005502100mm (3 units)
Weight	900-1250 kg

Drawing:

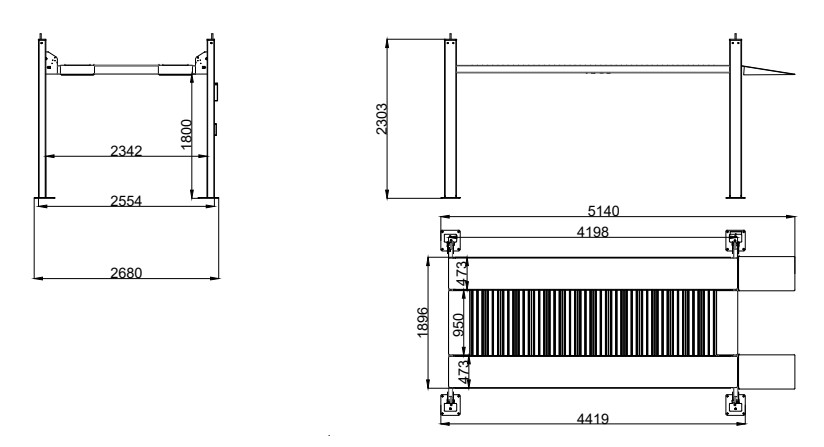

Lifting weight:1800MM

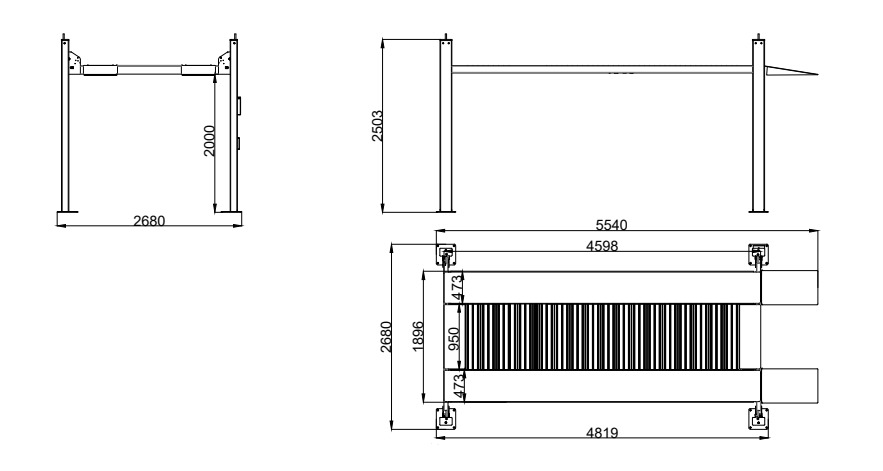

Lifting weight:2000MM

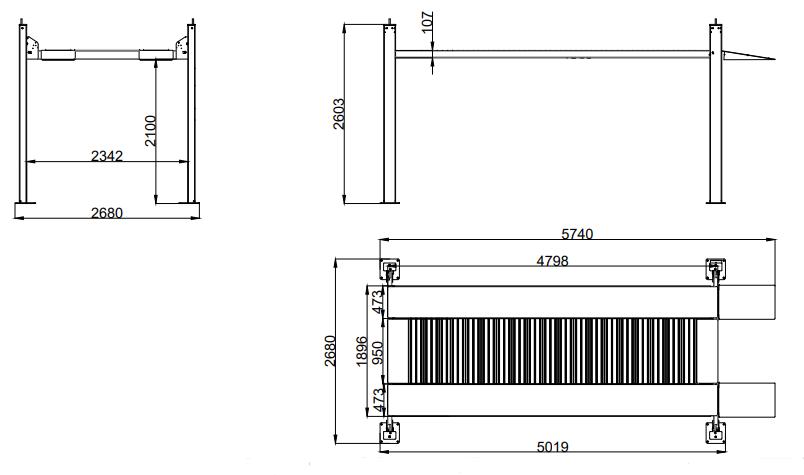

Lifting weight:2100MM
