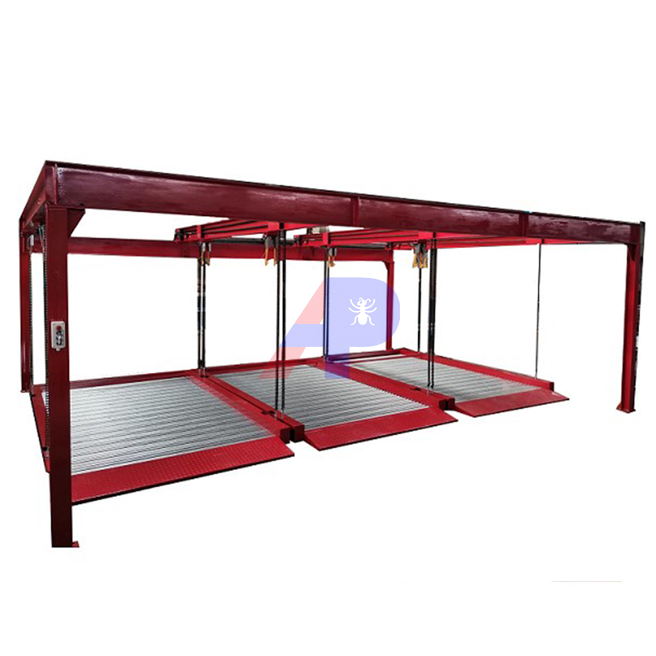

Four post parking lift for 6 cars

Technical Parameters:

Name

PUZZLE PARKING LIFT FOR 6 CARS

Model

PSH-3

Size car

5000*1850*1550/2050mm

Parking place

4/6

Capacity

≦2000kg

Lifting height

1800/2100mm

Platform inner width

2100mm

Power moto

2.2kw

Up & Down time

20/20 sek

Mode of operations

Control /key

Mode of control

Electric control

Mode of drive

Modol and chain

Lifting chain

16А

Voltage

380V,50Hz, 3 phase

Size equipment

7385mm*6000mm*2838mm

Size packsge

5900mm*1250mm*1300mm,  1050mm*650mm*1150mm

Surface treatment

Power coated /hot -galvanized (optional)

Drawing:



video:  https://youtu.be/XwmzprqLKTw
