Introduction:

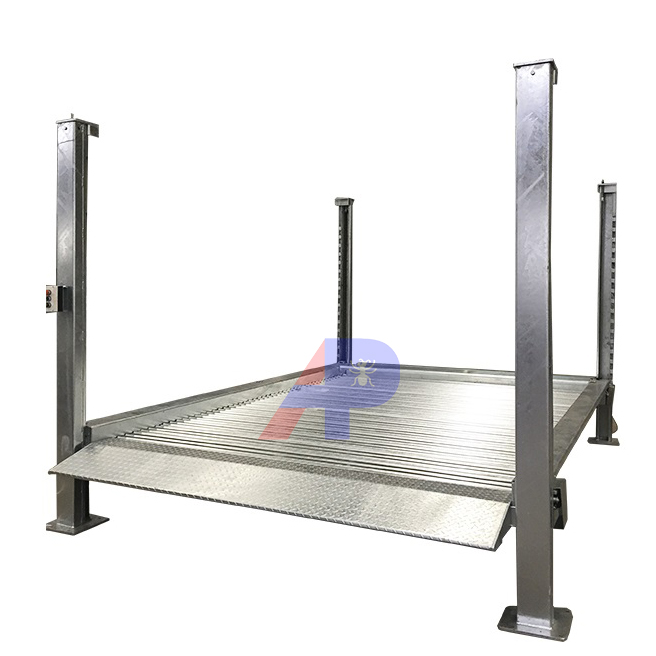

The is four post parking lift, specially designed for car parking, with the unique design
in the market. The product mainly consists of four posts and platform covered by wave plates.
The control panel is on the rear post, power pack and control box is on the back of platform.
The is four post parking lift, specially designed for car parking, with the unique design
in the market. The product mainly consists of four posts and platform covered by wave plates.
The control panel is on the rear post, power pack and control box is on the back of platform.
Technical Parameters：
|
Name |
Four post parking lift |
|
Model |
PJS601-3000 |
|
Car Size |
5000*1950*2000MM |
|
Lifting weight |
≤3000KG |
|
Cylinder |
1 |
|
Drive mode |
Hydraulic cylinders, chain driv |
|
Voltage |
220- 415V ,50/60HZ, 1/3HP |
|
Control voltage |
AC24V |
|
Up speed |
1.7M/MIN |
|
Down Speed |
1.9M/MIN |
|
Lifting Height |
2100MM |
|
The size of platform |
4224*2100MM |
|
Motor Power |
2.2KW |
|
Size of equipment |
4699*2678*2550MM |
|
weight |
1200KG |
|
Metal structure coating |
Plastic spraying / Galvanizing（option） |

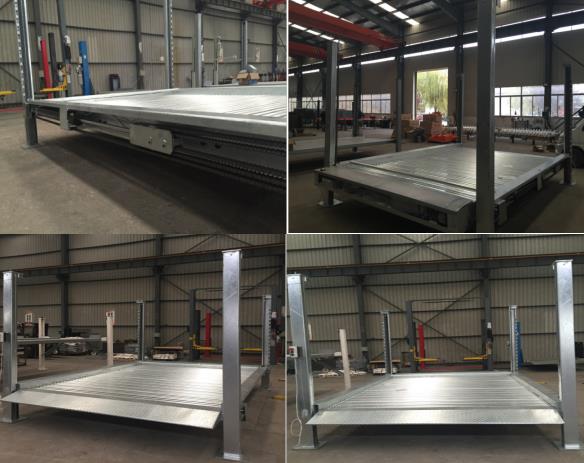

Detailed picture:

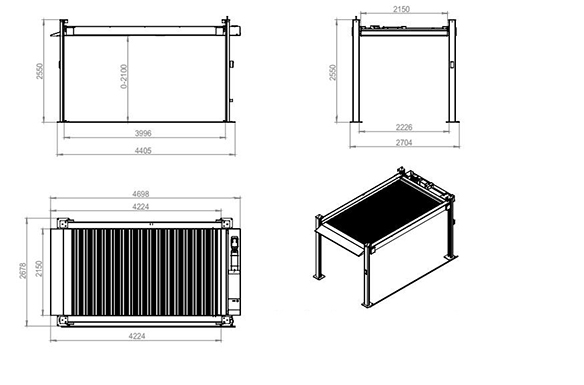

Overall Dimension:
video: https://youtu.be/jcUMzK623Do
Qingdao Lanhai Shengyuan Machinery Equipment CO.,LTD is one of China\'s simple parking equipment manufacturer,
committed to provide the most suitable and cost effective parking system solutions to you.
As a manufacturer, we focus on quality and technical innovation. The company has passed the ISO 9001:2008 international quality system certification and the EU compulsory safety certification(CE).
