1. Dual cylinder lifting, 2-load vehicle version linkage lifting, hydraulic driven rack balance.
2. Electric unlocking and anti fall locking.
3. Photoelectric switch to prevent people and vehicles from entering by mistake.
4. The vehicle platform can be galvanized or sprayed with plastic, with beautiful colors, and can be made of corrugated or patterned boards.
5. Suitable for parking in various places such as commercial and residential areas.
6. Full range buzzer and flashing light for lifting and lowering
7. The control button can be long pressed and jog, or the key can be used for 3rd gear reset and 3rd gear stop.
Technical parameters
|
Name |

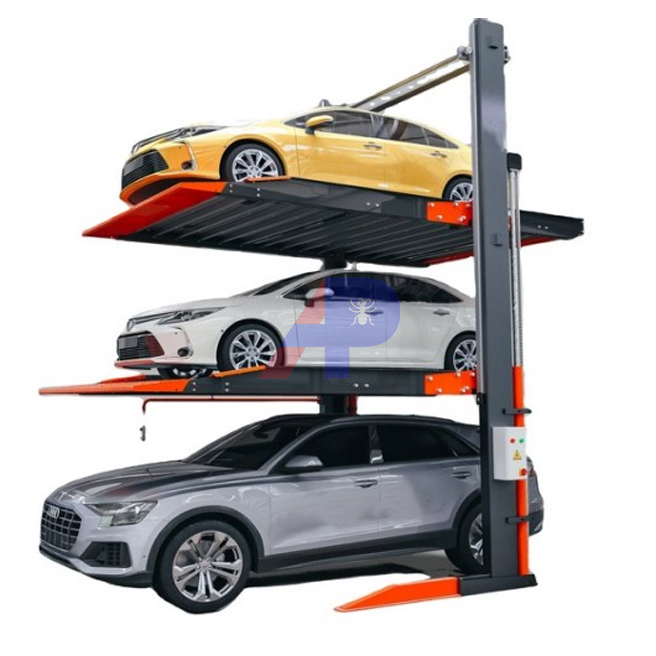

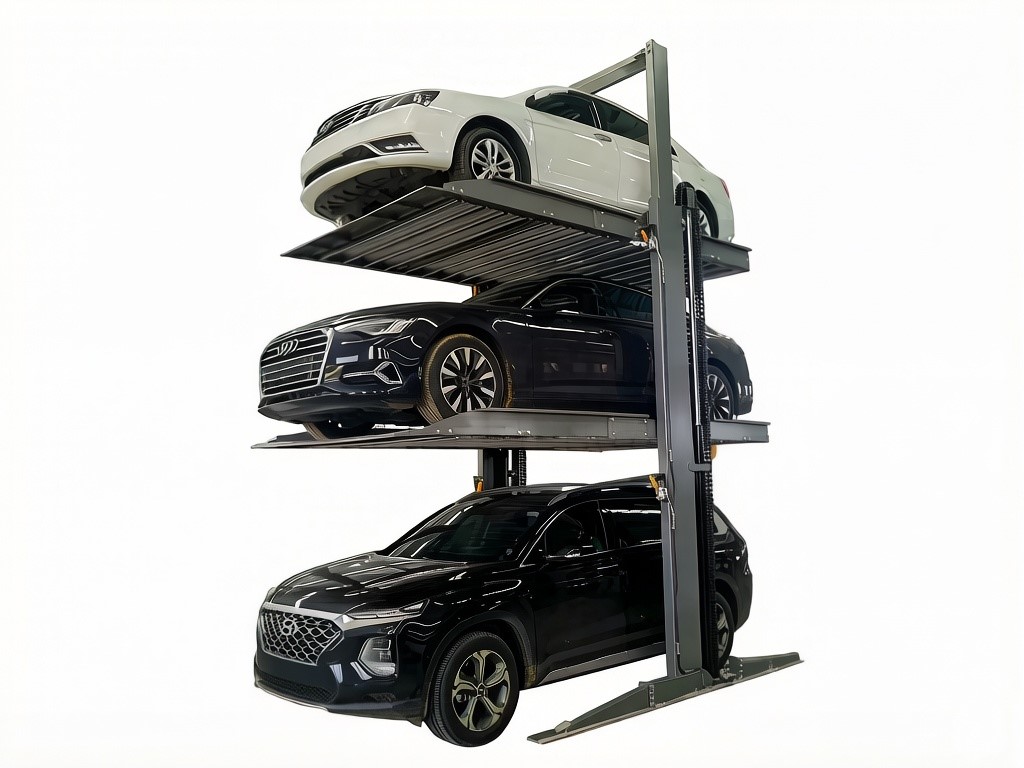

Two post triple stacker parking lift |
|
Model |
TPS40 |
|
Lifting Weight |
2300kg/2300kg |
|
Lifting Height |
2000/1700/1745 mm |
|
Platform Size |
2370/2300 mm |
|
Motor Power |
3 kw |
|
Operation Mode |
Button key |
|
Control Mode |
Electric control |
|
Drive Mode |
hydraulic drive |
|
Voltage |
380V,50Hz, 3 phase |
|
Hydraulic Cylinder |
Two cylinders |
|
Electric Control Box |
Waterproof control box |
|
Equipment Size |
4258*2680*5805 mm |
|
Operation Noise |
70 dB |
|
Surface Treatment |
Powder coated /hot galvanizing (optional) |
|
Packing Size |
5810*1000*700 mm |
|
Weight |
2400 kg |
|
20/40 foot container |
6units /10units |

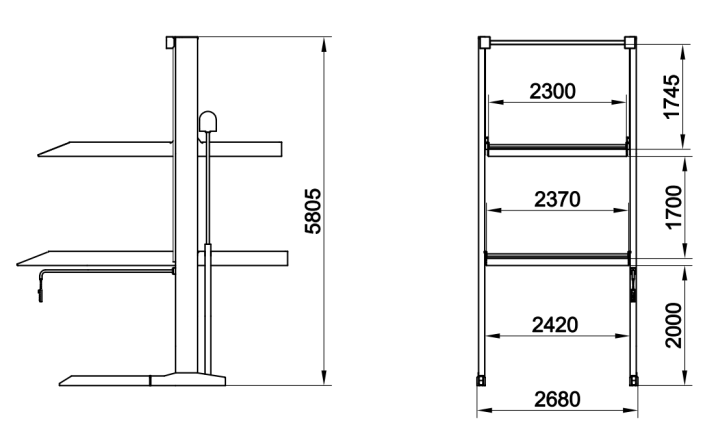

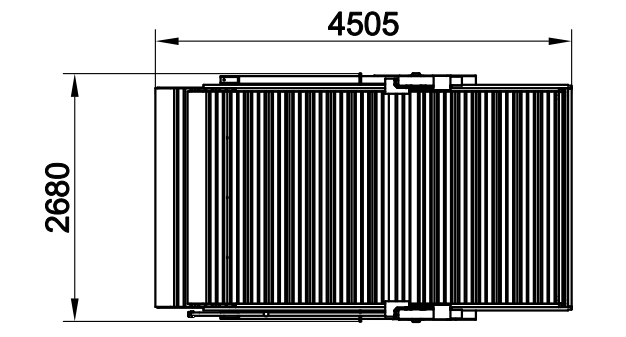

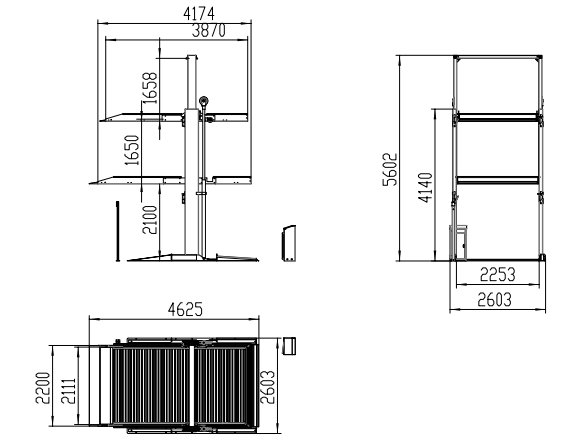

Drawing:
Qingdao Lanhai Shengyuan Machinery Equipment CO.,LTD is one of China\'s simple parking equipment manufacturer,
committed to provide the most suitable and cost effective parking system solutions to you.
As a manufacturer, we focus on quality and technical innovation. The company has passed the ISO 9001:2008 international quality system certification and the EU compulsory safety certification(CE).
